Clinician Arm Support

For supporting the clinician’s forearm during procedures utilising endoscopic technology.

Overview

The Adept Medical Clinician Arm Support offers an optimal solution for supporting the clinician’s arm during surgeries where endoscopic technology is utilised.

The support allows the clinician to manipulate the endoscope freely with low friction movement, providing a level of manoeuvrability. The Arm Rest comfortably supports the clinician’s arm, offering an ergonomic solution to reduce strain and fatigue over the duration of a procedure.

The Clinician Arm Support is stable, height and angular adjustable, and can be tuned to suit individual preferences. The pivoting arms allow the forearm support to be locked rigid or left free to suit clinician and procedural requirements.

With a quick and easy set-up, the Base Board placement allows for the support to be placed at any convenient position on the operating table, offering suitability for a range of endoscopic procedures. The cantilevered design frees up floorspace in the working environment, allowing clinicians to move easily.

Highlights

Clinician Arm Support

Versatile positioning with good coverage over table and height range.

Clinician Arm Support

Ability to lock support in horizontal plane or have it float and move with your procedural needs.

Clinician Arm Support

Provides ergonomic procedural comfort for the clinician reducing fatigue.

Product Video

Features

Clinician-led design

Designed in consultation with clinician input

Fits all tables

Designed for use for any standard procedure table

Quick and easy set-up and removal

Designed for easy set-up and removal

Easy Positioning

Can be adjusted to suit individual patient size

Radiolucent

Made from materials that are permeable to X-ray radiation, allowing for clear imaging

Crafted from carbon fibre

Light-weight, radiolucent and durable

Ergonomic surface

Provides clinicians an adjustable work-surface for their comfort

Height and Angular Adjustable

With easy to adjust latch to accommodate clinician height and angle preferences

Specifications

Specifications

Dimensions and Weight

+
No items found.

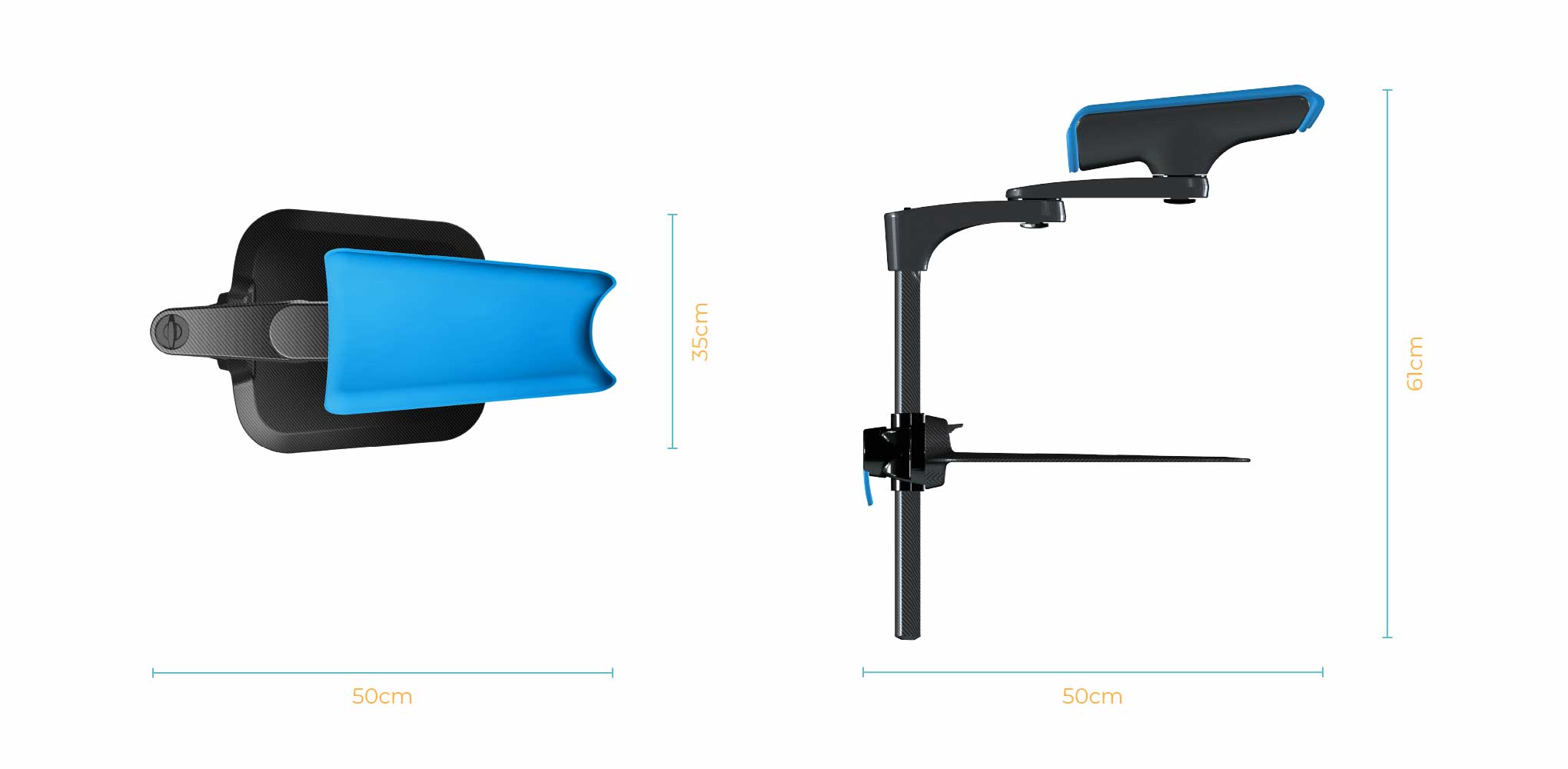

Dimensions

Clinician Arm Support
50cm x 35cm 61cm (height)

Weight

Clinician Arm Support
1.85kg

Dimensions and Weight

Dimensions

Clinician Arm Support
50cm x 35cm 61cm (height)

Weight

Clinician Arm Support
1.85kg

Product Code Configuration

+
No items found.

AM0900 Clinician Arm Support

Product Code Configuration

AM0900 Clinician Arm Support

Imaging Table Compatibility

+
No items found.

Ensure table geometry falls within this specification

Table Width
40cm to 70cm

Table Length
N/A

Table Angulation:

+/- 20° longitudinal & 10° lateral

Table Surface:
Flat

Imaging Table Compatibility

Ensure table geometry falls within this specification

Table Width
40cm to 70cm

Table Length
N/A

Table Angulation:

+/- 20° longitudinal & 10° lateral

Table Surface:
Flat

Aluminium Equivalence

+
No items found.
Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Aluminium Equivalence
Aluminium Equivalence measured at 100kVp using narrow beam geometry.

Interactive Model

+
No items found.

Press play button to interact with the 3D model

Interactive Model

Press play button to interact with the 3D model

Adept Medical Storage System (AM0001) Configuration

+
No items found.

A space-saving, storage solution for the Adept Medical suite.

Custom-designed for your Adept Medical products, the Adept Medical Storage System* is a low-profile, wall hanging solution to help organise your workspace with ease, speed and efficiency.

*Brackets are intended for specified Adept Medical product use only.

**Note: Products shown, and device placement are artist’s impressions only.

AM0900 Clinician Arm Support requires 1x AM0001 (contains 2 brackets).

Download the Brochure or click here to order yours today.

Adept Medical Storage System (AM0001) Configuration

A space-saving, storage solution for the Adept Medical suite.

Custom-designed for your Adept Medical products, the Adept Medical Storage System* is a low-profile, wall hanging solution to help organise your workspace with ease, speed and efficiency.

*Brackets are intended for specified Adept Medical product use only.

**Note: Products shown, and device placement are artist’s impressions only.

AM0900 Clinician Arm Support requires 1x AM0001 (contains 2 brackets).

Download the Brochure or click here to order yours today.

+
No items found.

+
No items found.

+
No items found.

Training Platform

The Adept Medical Training Platform has been produced to assist Adept Medical’s Table Accessories users by providing information on our product portfolio.

With a step-by-step pictorial guide on unboxing, set-up, usage, cleaning, re-boxing, repairs, warranty and replacement parts, it has been developed to support our customers in every step.

Continue to training platform

Applications

Sinus Surgery (FESS)
Sinus Surgery (FESS)

FESS (Sinus) Interventions

Brochure Downloads

Please select a brochure in your preferred language to download. If you require an additional language, please contact us.

Brochure Downloads

FAQ

+

+

+

+

+

+

Is the Clinician Arm Support height adjustable?

+

Yes, the height of the Clinician Arm Support can be adjusted.

Is there angular adjustment to the Clinician Arm Support?

+

Yes, there is angular adjustment to the Clinician Arm Support which can be tuned to suit individual preferences.

Is there any table mounting needed when setting up the Clinician Arm Support?

+

No, the Clinician Arm Support is positioned on  the operating table by a Base Board that sits underneath the mattress and is supported by patient’s weight.
