Head Immobiliser

Product Training Make an Enquiry

Head Immobiliser

Interventional Radiology

Interventional Neuroradiology

Codes: AM0800

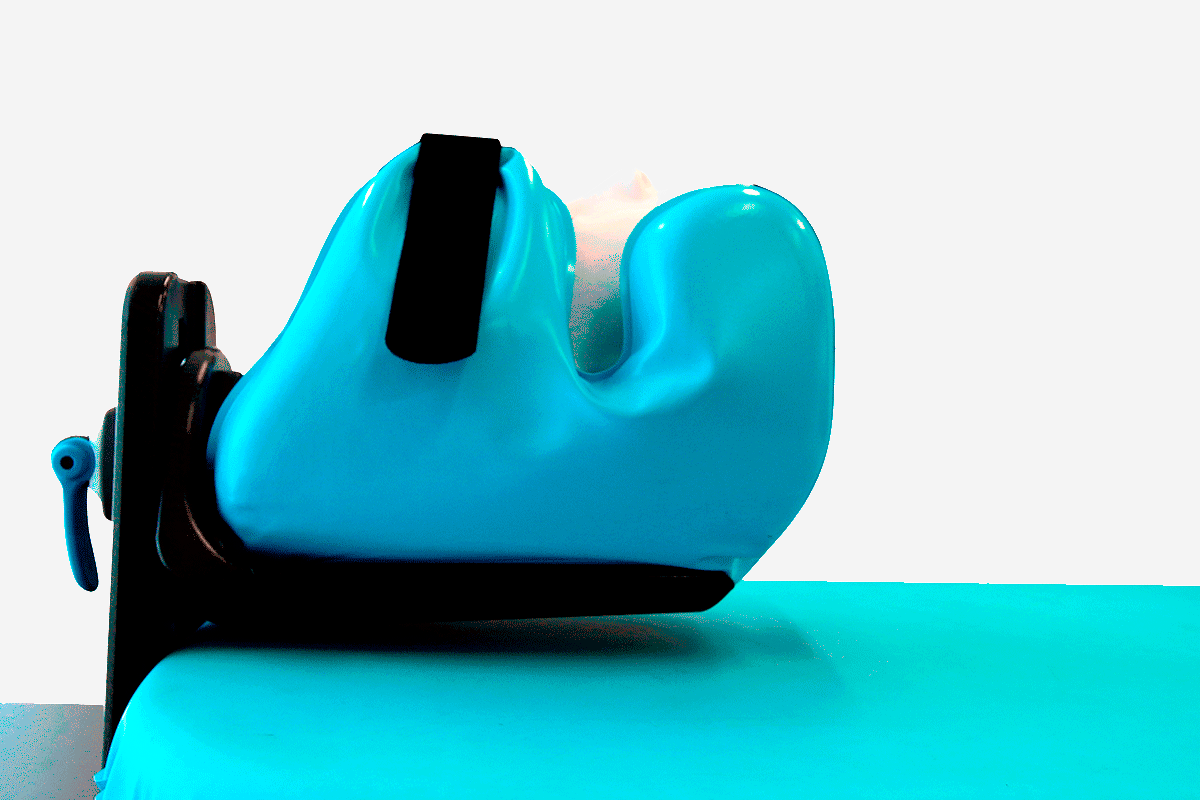

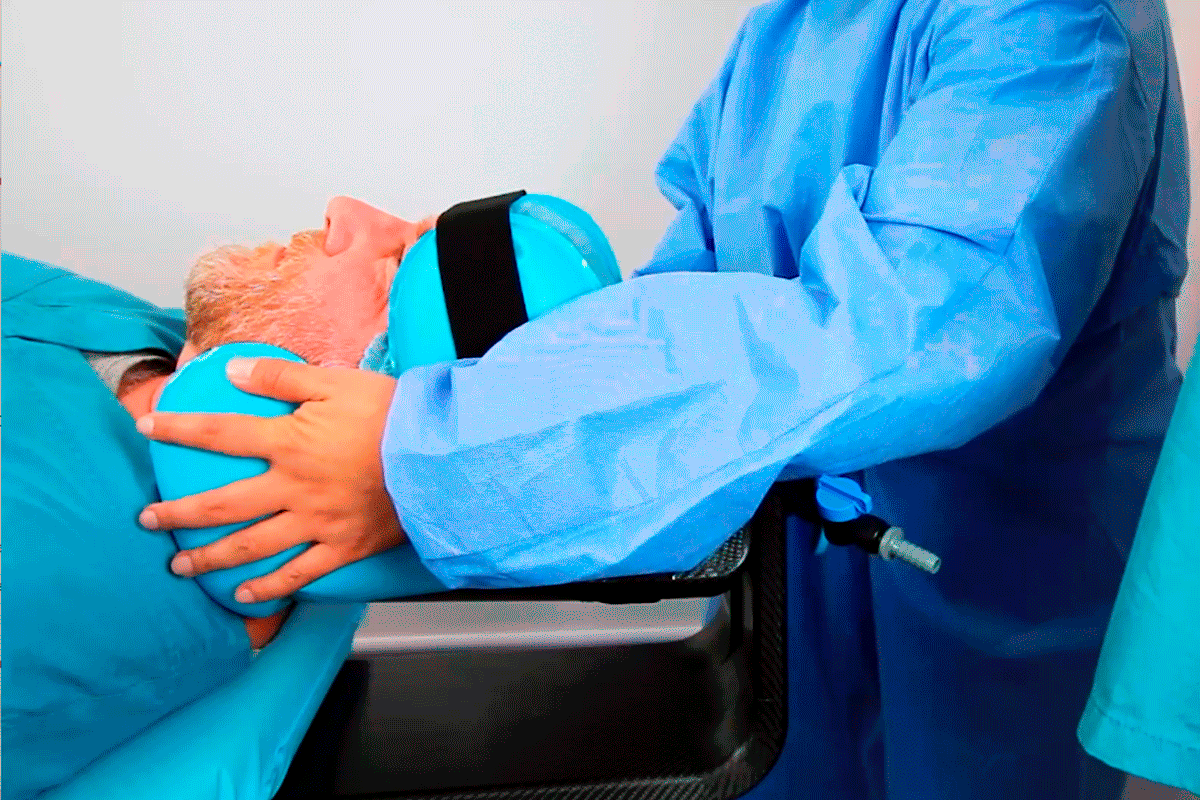

The Head Immobiliser is a radiolucent head support designed for secure and comfortable immobilisation during image-guided procedures.

Compatible with most angiography and CT imaging tables
Fast immobilisation using vacuum suction system
Radiolucent design for minimal imaging interference
Flexible hood for a wide range of head shapes and sizes
Easy height adjustment to suit procedure needs
Fast, simple setup and removal
Compact footprint to maximise space around the procedure table

Download product brochure

Product Training Make an Enquiry

Highlights

Specifications

If you require any further details, please reach out to our teamMake an Enquiry

Dimensions

896 x 449 x 290 mm*Height adjustable from 290 - 407 mm

Weight

3.0 kg

Aluminium Equivalence

1.01 - 2.28 mm*Aluminium Equivalence measured at 100kVp using narrow beam geometry.

Imaging Table Compatibility

‍‍Ensure table geometry falls within this specification:Table Width: 450 - 700 mmTable Length: ≥2000 mmTable Angulation: +/- 15° lateral & longitudinal Table Surface: Flat and Curved

Product Code Configuration

AM0800

If you require any further details, please reach out to our teamMake an Enquiry
