IR System
IR System
Interventional Radiology
Peripheral Intervention

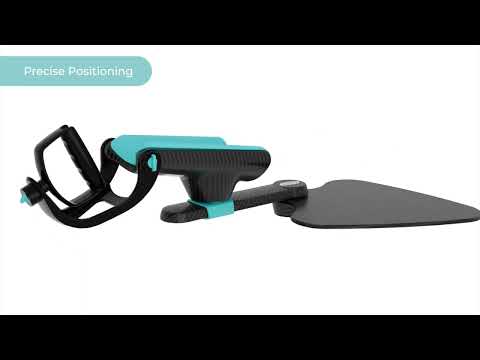

The IR System is a left-side optimised radial access positioning system for image-guided endovascular procedures.
- Supports left and right radial access (distal and proximal)
- Adjustable wrist friction for positioning control
- Ergonomic surface designed for guidewire management
- 0.5 mm Pb scatter radiation shielding
Highlights
Specifications
Dimensions
950 x 357 x 305 mm*Length adjustable from 950 - 1095 mm
Weight
STARBoard: 1.3 kgExtension Tray: 0.2 kg
Aluminium Equivalence
0.22 - 9.08 mm*Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Imaging Table Compatibility
Ensure table geometry falls within this specification:Table Width: 450 - 700 mmTable Length: ≥2000 mmTable Angulation: +/- 15° lateral & longitudinal Table Surface: Flat
Product Code Configuration
AM0180 STARBoard + Extension TrayAM0500 IR ShieldAM0190 Extension Tray
Dimensions
463 x 228 x 257 mm
Weight
1.8 kg
If you require any further details, please reach out to our teamMake an Enquiry
