Retrograde IR Platform
Retrograde IR Platform
Interventional Radiology
Interventional Cardiology
Interventional Neuroradiology
Peripheral Intervention
The Retrograde IR Platforms are lightweight, modular over-patient work surfaces for improved workflow and patient security during retrograde arterial access procedures. Choose from two sizes to suit your patient.

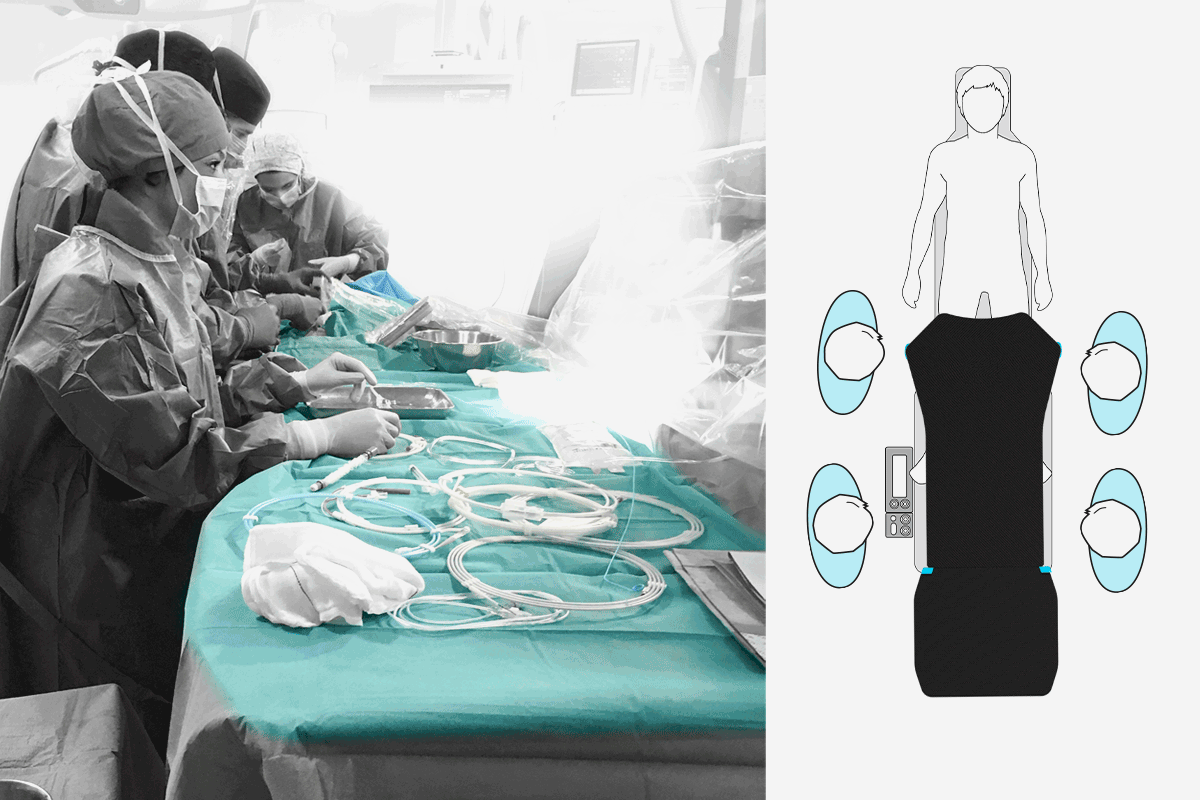

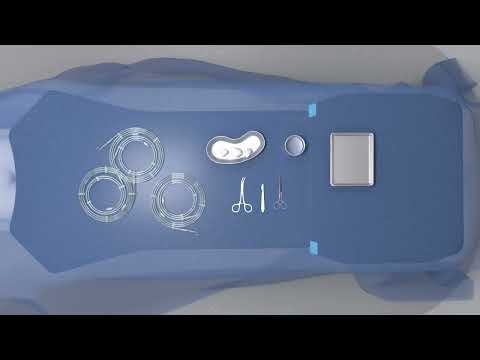

- Strong, stable work surface for catheter and guidewire management
- Height adjustable to align with the femoral access site
- Lightweight, radiolucent carbon fibre composite

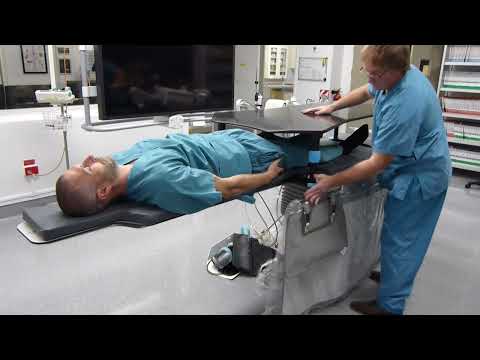

- Fast, simple setup and removal over the legs of a supine patient

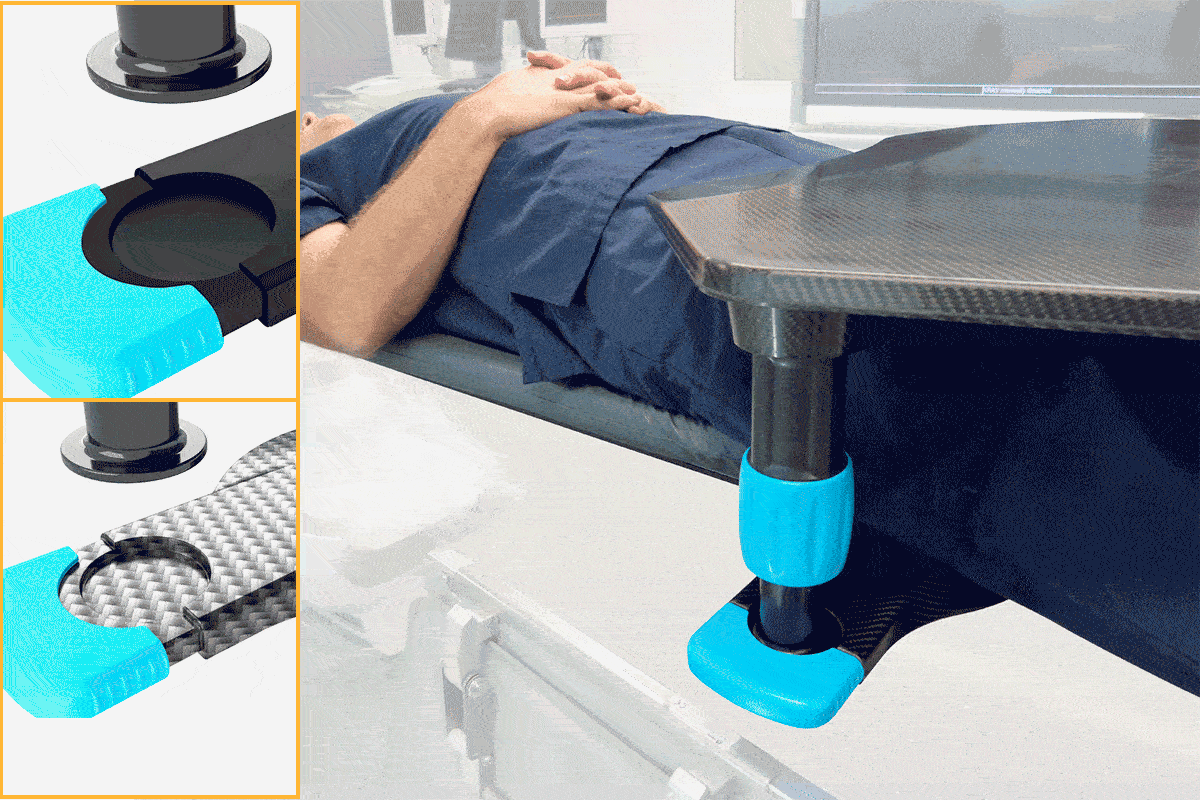

- Locks in place for added stability during patient movement
- Smooth surface that’s easy to clean and maintain
- Two width options to suit different procedural needs:
- AM0400: Broad surface offers more space for equipment
- AM0450: Narrow surface keeps clear of rear-mounted equipment and fits compact work areas
- Optional extension for adding length when using longer equipment
Highlights
Specifications
Dimensions
1,400 mm x 817 x 190 mm*Length can be increased to 2,000 mm with the IR Platform Extension **Height adjustable from 190 - 406 mm (fully extended + Leg Extension)
Weight
Retrograde IR Platform (without Extension): 8.7 kg IR Platform Extension: 3.6 kg
Aluminium Equivalence
Retrograde IR Platform: 0.976 - 1.64 mm*Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Imaging Table Compatibility
Ensure table geometry falls within this specification:Table Width: 450 - 700 mmTable Length: ≥2000 mmTable Angulation: +/- 15° lateral & longitudinal Table Surface: Flat and Curved
Product Code Configuration

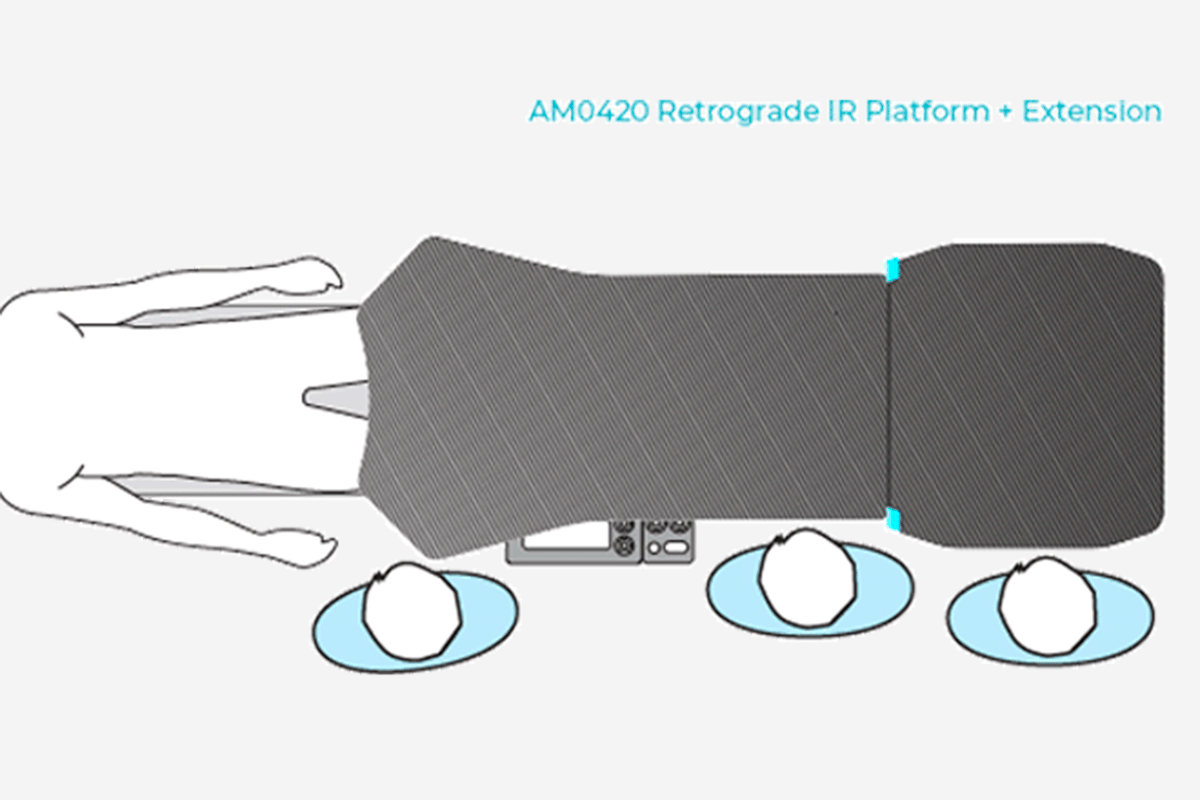

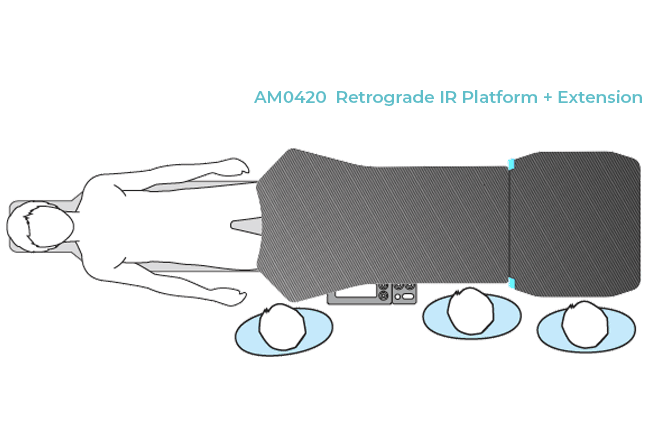

AM0420 Retrograde IR Platform + ExtensionAM0400 Retrograde IR PlatformAM0410 IR Platform Extension
Dimensions
1,390 x 662 x 181 mm*Length can be increased to 1,864 mm with the IR Platform Extension – Narrow**Height adjustable from 181 - 401 mm (fully extended + Leg Extension)
Weight
Retrograde IR Platform – Narrow: 5.3 kgIR Platform Extension – Narrow: 1.6 kg
Aluminium Equivalence
0.781 - 1.21 mm*Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Product Code Configuration
AM0460 Retrograde IR Platform – Narrow + ExtensionAM0450 Retrograde IR Platform – NarrowAM0470 IR Platform Extension – Narrow
If you require any further details, please reach out to our teamMake an Enquiry
