Overhead Arm Support
Overhead Arm Support
Interventional Radiology
Interventional Cardiology

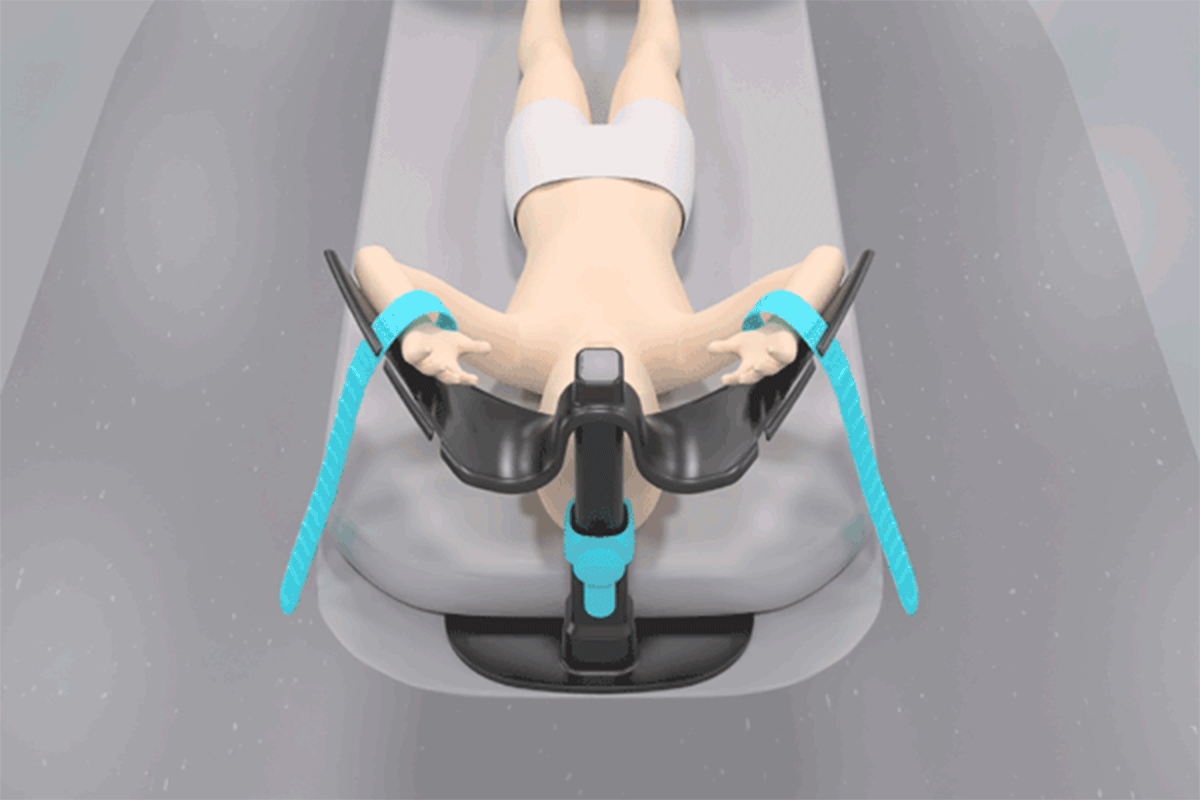

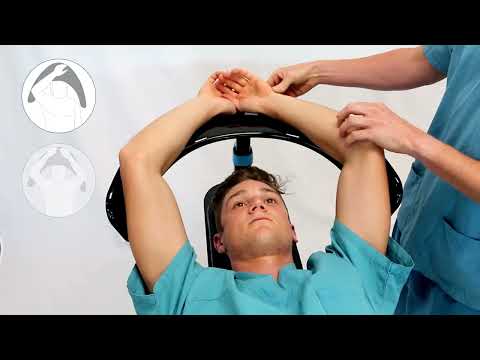

The Overhead Arm Support - MR Safe range positions one or both arms above the head to improve access and imaging in the abdominal area during image-guided procedures. Choose from two sizes to suit your patient.
- MR safe and compatible with C-arm, CT, and MRI
- Allows abdominal access
- Reduces artefacts by elevating arms above head
- Fast, simple setup and removal
- Optional safety straps for additional support
- Ergonomic design for stable and comfortable patient comfort in supine position
- Fits most standard imaging tables
- Two size options to suit a wide range of patients:
- AM4000: For patients weighing 47 – 135 kg, fits bores ≥ 700 mm
- AM4100: For patients weighing 13 – 47 kg, fits bores ≥ 600 mm with compact wing design for smaller patients
Highlights
Specifications
Device Selection Guide
Patient Weight: 47 - 135 kgCT/MRI Bore Size: ≥ 700 mm
Dimensions
496 x 592 x 265 mm*Height adjustable from 265 - 376 mm
Weight
1.9 kg
Aluminium Equivalence
0.63 mm*Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Imaging Table Compatibility
Ensure table geometry falls within this specification:Table Width: 450 - 700 mmTable Length: ≥2000 mmTable Angulation: +/- 15° lateral & longitudinal Table Surface: Flat and Curved
Product Code Configuration
AM4000 Overhead Arm SupportAM4100 Overhead Arm Support - Small
Device Selection Guide
Patient Weight: 13 - 47 kgCT/MRI Bore Size: ≥ 600 mm
Dimensions
440 x 462 x 199 mm*Height adjustable from 199 - 310 mm
Weight
1.5 kg
If you require any further details, please reach out to our teamMake an Enquiry
