STARSystem
STARSystem
Interventional Cardiology
Interventional Neuroradiology

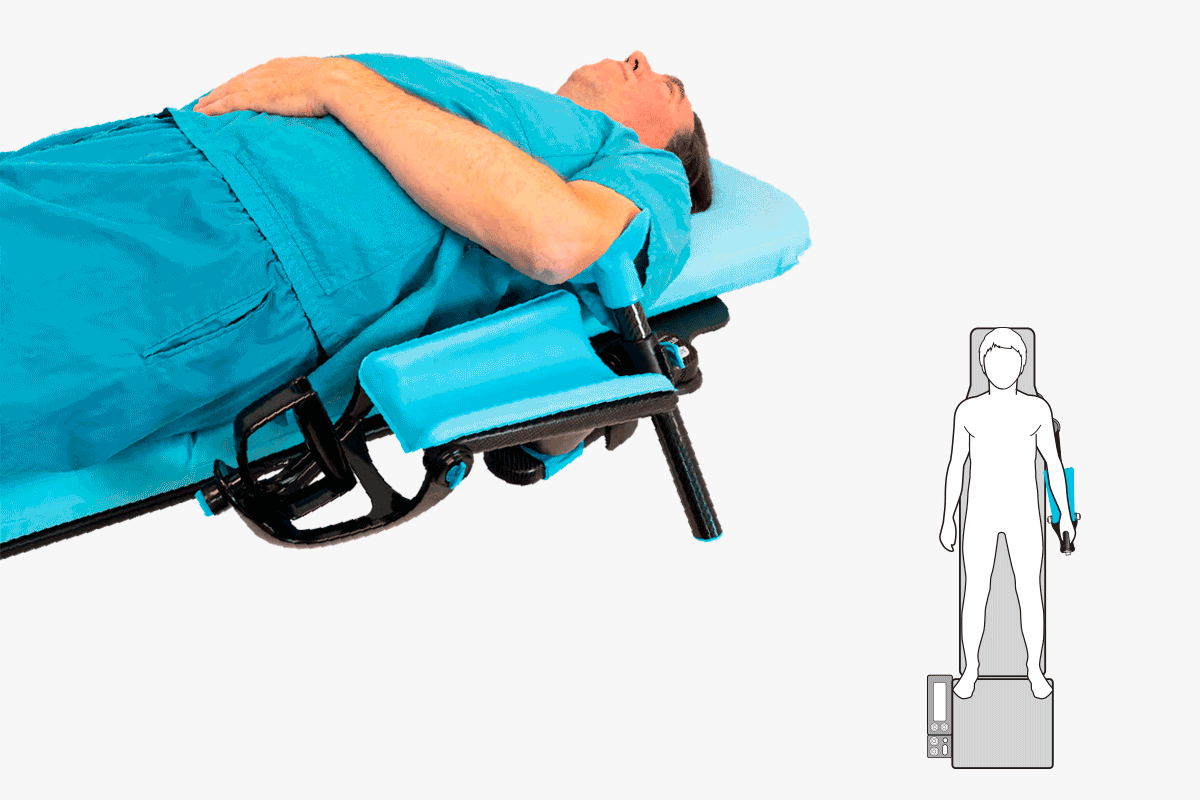

The STARSystem is a right-side optimised radial access positioning system for image-guided endovascular procedures.
- Supports left and right radial access (distal and proximal)

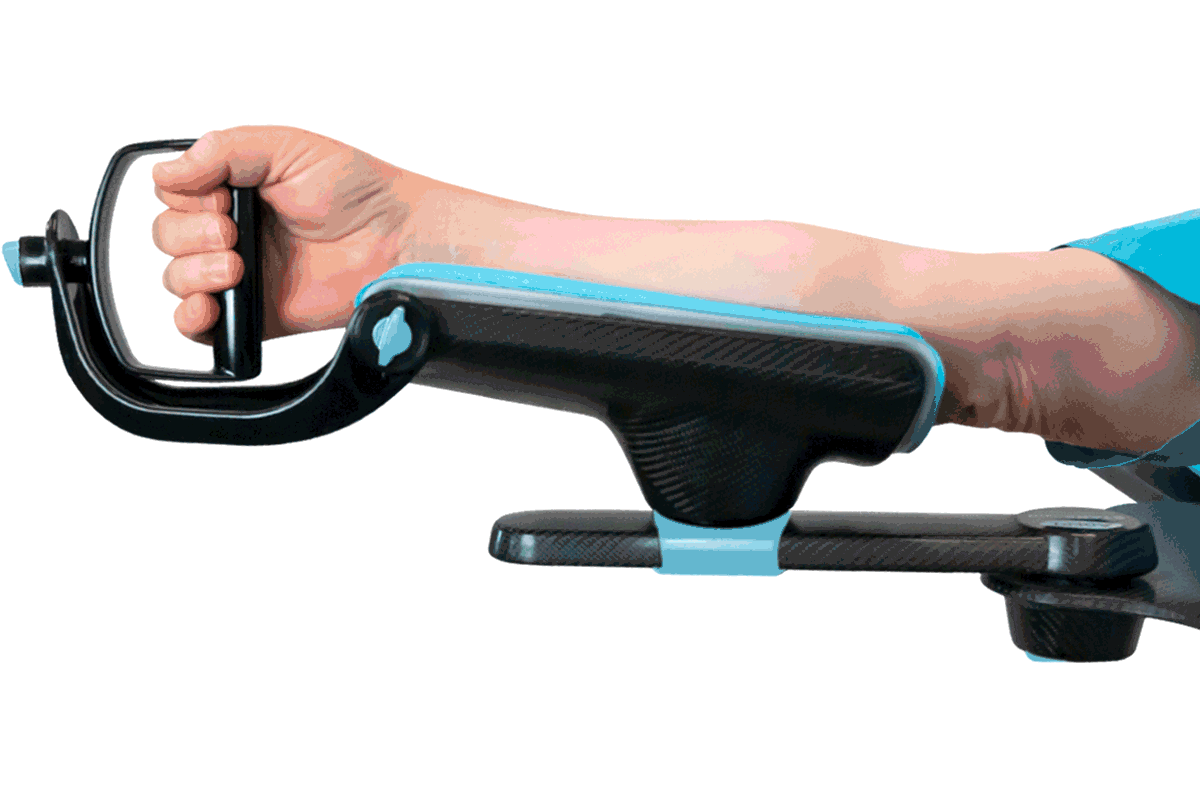

- Adjustable wrist friction for positioning control
- Ergonomic surface designed for guidewire management
- 0.5 mm Pb scatter radiation shielding
- Compatible with all angiography imaging tables
- Fast, simple setup and removal
- Made from radiolucent carbon fibre
- Pressure-relieving arm pad for added comfort
- Automatically adjusts to patient arm length
Highlights
Specifications
Dimensions
819 x 357 x 254 mm*Length adjustable from 819 - 964 mm
Weight
1.3 kg
Aluminium Equivalence
0.22 - 9.08 mm*Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Imaging Table Compatibility
Ensure table geometry falls within this specification:Table Width: 450 - 700 mmTable Length: ≥2000 mmTable Angulation: +/- 15° lateral & longitudinal Table Surface: Flat
Product Code Configuration
AM0160 STARSystemAM0100 STARBoard + STARSupportAM0140 STARTable
Dimensions
463 x 228 x 257 mm
Weight
1.8 kg
Dimensions
355 mm
Weight
0.4 kg
If you require any further details, please reach out to our teamMake an Enquiry
