Head Immobiliser

A radiolucent, secure, and comfortable head support for image guided procedures in interventional radiology and neuroradiology.

Overview

The Adept Medical Head Immobiliser is the ideal radiolucent support for image guided procedures on and around the patient’s head. It comfortably supports, secures, and positions the head for a range of clinical applications. Compatible with most imaging tables, the Head Immobiliser provides comfortable head positioning and immobilisation in seconds through a vacuum suction system, reducing movement during image guided procedures. This allows interventions to be performed under optimal conditions, providing benefits to patient management, imaging quality, and procedural workflow.

The Head Immobiliser has a flexible hood design that can be used for different head shapes and sizes. Equipped with an adjustable joint, the head support can be adjusted for height, or rotated to a more ideal position, allowing the patient to be positioned to suit procedural requirements.

Manufactured in New Zealand using carbon fibre components, the Head Immobiliser is lightweight, durable, and radiolucent, with an aluminium equivalence of 2.23mm, providing minimal interference with X-Ray imaging.

Highlights

Head Immobiliser

Manufactured from radiolucent materials, the Head Immobiliser will produce minimal artefact during imaging, providing improved imaging diagnostics during conscious sedation.

Head Immobiliser

Immobilisation in seconds using vacuum suction, it comfortably supports a patient’s head while locked rigid around the head.

Head Immobiliser

Flexible hood design can accommodate different head shapes and sizes.

Product Video

Features

Clinician-led design

Designed in consultation with clinician input

Crafted from carbon fibre

Light-weight, radiolucent and durable

Easy to clean

Smooth surface allows easy clean-up with approved cleaners and disinfectants

Fits all tables

Designed for use for any standard procedure table

Height and Angular Adjustable

With easy to adjust latch to accommodate clinician height and angle preferences

Optimal patient comfort reducing anxiety

Designed to enhance patient comfort and reduce anxiety for procedures performed under conscious sedation

Patient comfort

Designed to enhance patient comfort

Radiolucent

Made from materials that are permeable to X-ray radiation, allowing for clear imaging

Takes up minimal space around table

Daggerboard slides under the mattress to ensure there is no unnecessary bulk in the way of the clinician

Flexible hood design

Can be used for different head shapes and sizes, and designed to comfortably wrap around each individual's head

Specifications

Specifications

Dimensions and Weight

+
No items found.

Dimensions

Head Immobiliser
44.9cm x 89.6cm

Height
28.9cm (hood at lowest point)

40.4cm (hood at highest point)

Weight

Head Immobiliser
2.8kg

Dimensions and Weight

Dimensions

Head Immobiliser
44.9cm x 89.6cm

Height
28.9cm (hood at lowest point)

40.4cm (hood at highest point)

Weight

Head Immobiliser
2.8kg

Product Code Configuration

+
No items found.

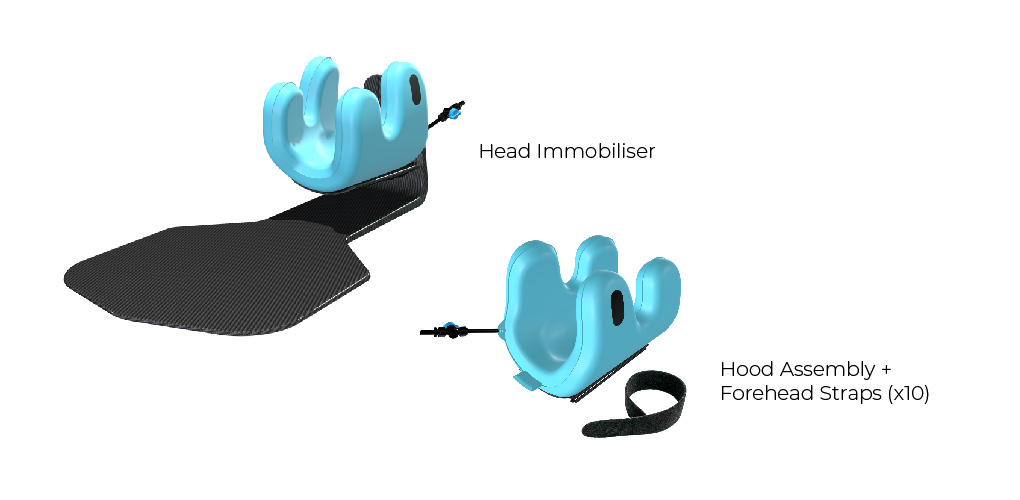

AM0800 Head Immobiliser

AM0820 Hood Assembly + Forehead Straps (x10)

Product Code Configuration

AM0800 Head Immobiliser

AM0820 Hood Assembly + Forehead Straps (x10)

Imaging Table Compatibility

+
No items found.

Ensure table geometry falls within this specification

Table Angulation:
+/- 15° lateral & longitudinal

Table Surface:
Flat and Curved

Imaging Table Compatibility

Ensure table geometry falls within this specification

Table Angulation:
+/- 15° lateral & longitudinal

Table Surface:
Flat and Curved

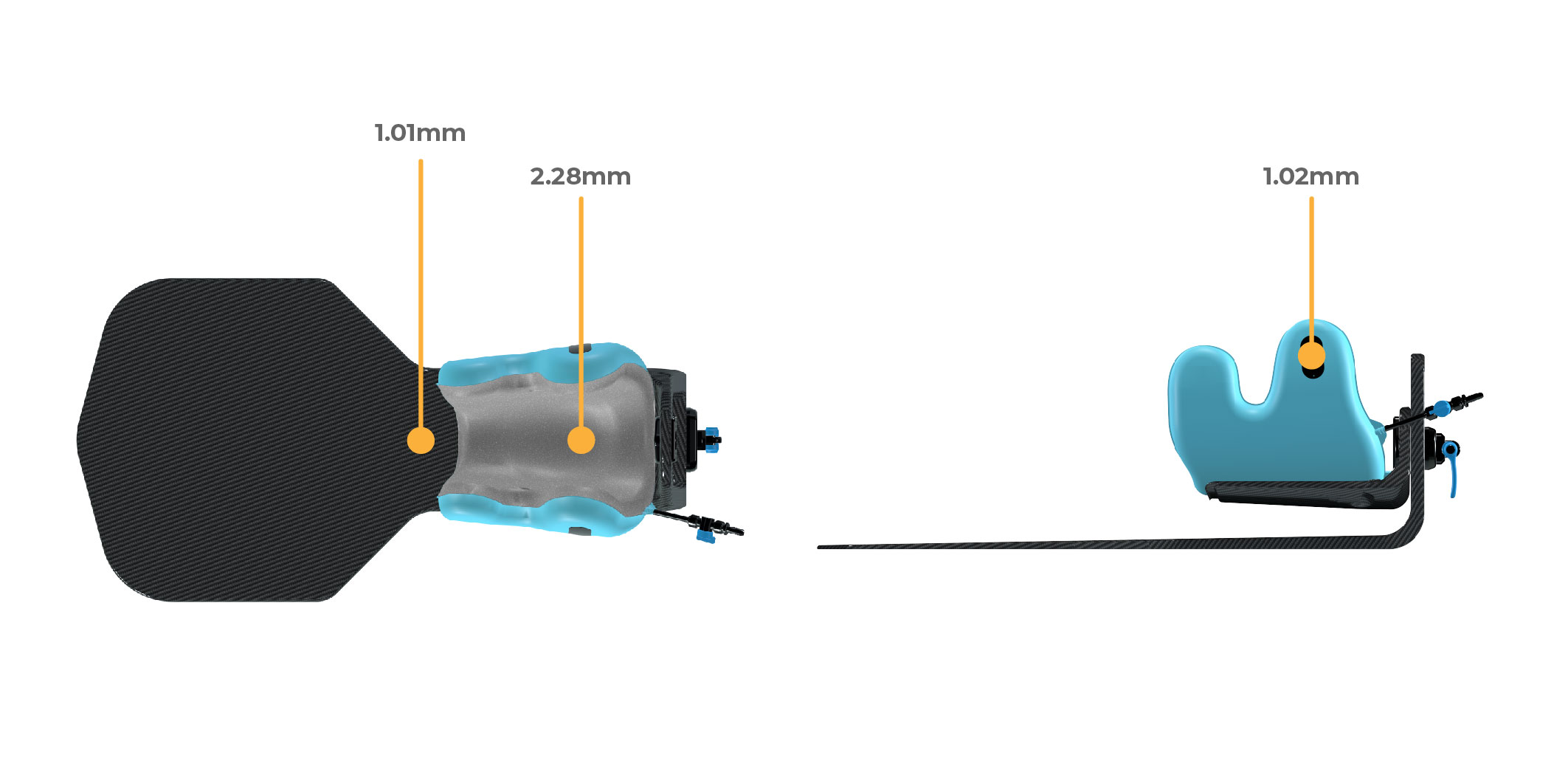

Aluminium Equivalence

+
No items found.

Aluminium Equivalence measured at 100kVp using narrow beam geometry.

Aluminium Equivalence

Aluminium Equivalence measured at 100kVp using narrow beam geometry.

Interactive 3D Model

+
No items found.
Interactive 3D Model

Adept Medical Storage System (AM0001) Configuration

+
No items found.

A space-saving, storage solution for the Adept Medical suite.

Custom-designed for your Adept Medical products, the Adept Medical Storage System* is a low-profile, wall hanging solution to help organise your workspace with ease, speed and efficiency.

*Brackets are intended for specified Adept Medical product use only.

**Note: Products shown, and device placement are artist’s impressions only.

AM0800 Head Immobiliser requires 1x AM0001 (contains 2 brackets).

Download the Brochure or click here to order yours today.

Adept Medical Storage System (AM0001) Configuration

A space-saving, storage solution for the Adept Medical suite.

Custom-designed for your Adept Medical products, the Adept Medical Storage System* is a low-profile, wall hanging solution to help organise your workspace with ease, speed and efficiency.

*Brackets are intended for specified Adept Medical product use only.

**Note: Products shown, and device placement are artist’s impressions only.

AM0800 Head Immobiliser requires 1x AM0001 (contains 2 brackets).

Download the Brochure or click here to order yours today.

+
No items found.

+
No items found.

+
No items found.

+
No items found.

+
No items found.

+
No items found.

Training Platform

The Adept Medical Training Platform has been produced to assist Adept Medical’s Table Accessories users by providing information on our product portfolio.

With a step-by-step pictorial guide on unboxing, set-up, usage, cleaning, re-boxing, repairs, warranty and replacement parts, it has been developed to support our customers in every step.

Continue to training platform

Applications

Head Immobiliser Interventional Radiology
Head Immobiliser Interventional Radiology

For procedures that require the head to be immobilised, especially for image guided interventions and diagnostics on and around the patient's head such as CT guided cervical nerve root injection procedures, cerebral angiographies, and mechanical endovascular interventions.

Head Immobiliser Interventional Neuroradiology
Head Immobiliser Interventional Neuroradiology

For procedures that require the head to be immobilised, especially for image guided interventions and diagnostics on and around the patient's head such as neuro-imaging through angiography or CT.

Brochure Downloads

Please select a brochure in your preferred language to download. If you require an additional language, please contact us.

Brochure Downloads

FAQ

+

+

+

+

+

+

Is it radiolucent?

+

Yes.

What is the aluminium equivalence?

+

The Head Immobiliser has an Aluminium Equivalence of 2.23mm when measured through the centre of the Hood Assembly.

Will it fit within my CT Bore?

+

The support is designed to fit within a 70cm bore.

How long does the device hold its vacuum?

+

While the Head Immobiliser can hold for at least 24 hours, we do recommend releasing the vacuum every two hours for optimal immobilisation and to check patient comfort.

How do we keep the hood clean between procedures?

+

A drape can be used on top of the hood assembly before each procedure.

How long should we evacuate the hood for to ensure optimal immobilisation and patient comfort?

+

We recommend 10 seconds of vacuum suction.
