Antegrade IR Platform

A lightweight work surface that improves workflow and patient safety during antegrade femoral access procedures.

Overview

The Antegrade IR Platform is the ultimate support for your equipment needs, providing a large, stable area for catheter/guide wire manipulation and management. The height adjustable work surface conveniently aligns with the femoral access site and improves patient comfort by eliminating the need to work directly on or around the patient.

Made from carbon fibre composite, the Antegrade IR Platform is exceptionally light, strong, radiolucent, and extremely easy to install by placing over the shoulder of a supine patient while they rest on the imaging table. The narrow portion extends along the patient’s side, toward the femoral access site, providing a steady surface to work on. The platform can be locked in place to ensure security during instances of patient restlessness.

Ideally used in conjunction with the Adept Medical Drape Support, this combination offers optimal patient comfort by creating a spacious environment beneath the drape.

* Drape Support (AM1000) are sold separately from the Antegrade IR Platform.

Highlights

Antegrade IR Platform

The wires are aligned with the femoral access site for an ergonomic procedural experience.

Antegrade IR Platform

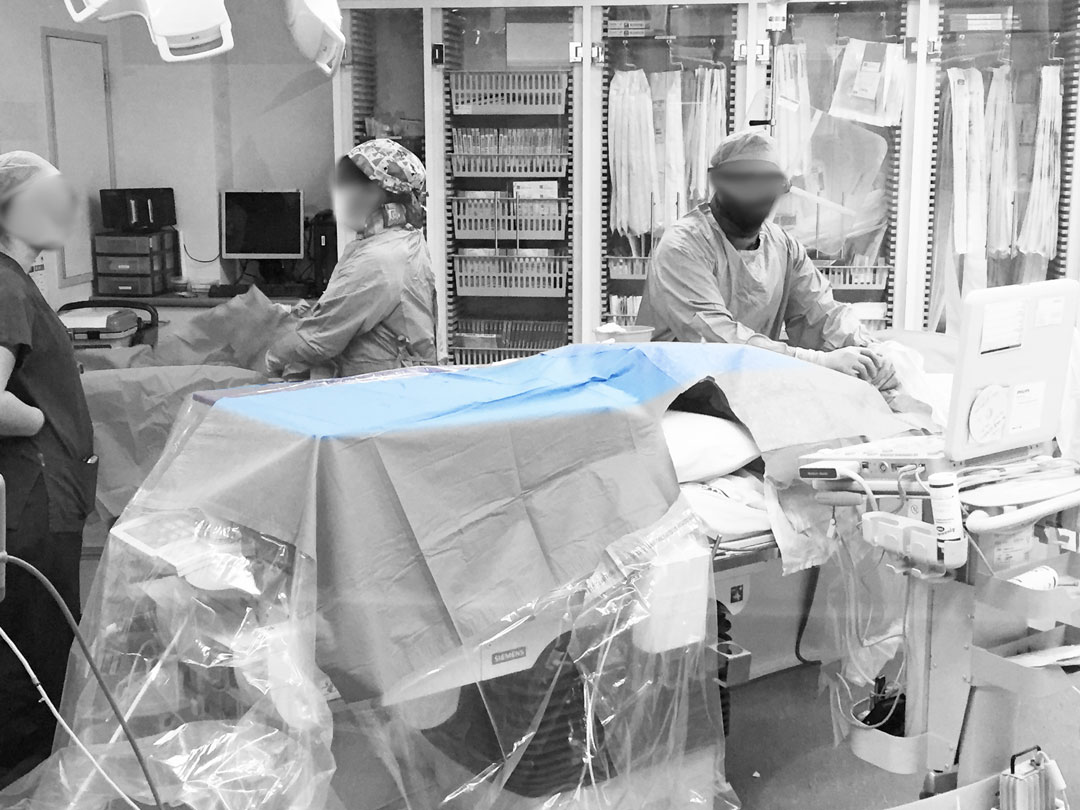

Bringing the large working surface closer to the access site allows for the team to work together side by side.

Antegrade IR Platform

The legs lock into the base to ensure the work surface is secure when you need it to be, even if the patient is restless.

Product Video

Features

Strong, stable work-surface

Suitable for supporting clinicians' wrists and common equipment for interventional radiology procedures

Alignment with femoral side

Platform narrows toward the femoral artery offering wrist-support during wire-manipulation

Quick and easy set-up and removal

Designed for easy set-up and removal

Easy Positioning

Can be adjusted to suit individual patient size

Radiolucent

Made from materials that are permeable to X-ray radiation, allowing for clear imaging

Easy to clean

Smooth surface allows easy clean-up with approved cleaners and disinfectants

Specifications

Dimensions and Weight

+
No items found.

Dimensions

Antegrade IR Platform
140cm x 70cm

Height
28cm (38 with leg extension)/17cm

Extension

67cm x 75cm

Weight

Antegrade IR Platform
4kg

Max weight Supported
10kg

Dimensions and Weight

Dimensions

Antegrade IR Platform
140cm x 70cm

Height
28cm (38 with leg extension)/17cm

Extension

67cm x 75cm

Weight

Antegrade IR Platform
4kg

Max weight Supported
10kg

Product Code Configuration

+
No items found.

AM0440 Antegrade IR Platform

Product Code Configuration

AM0440 Antegrade IR Platform

Imaging Table Compatibility

+
No items found.

Ensure table geometry falls within this specification

Table Width
45cm to 70cm

Table Length
≥240cm

Table Angulation:

+/- 15° lateral & longitudinal

Table Surface:
Flat

Imaging Table Compatibility

Ensure table geometry falls within this specification

Table Width
45cm to 70cm

Table Length
≥240cm

Table Angulation:

+/- 15° lateral & longitudinal

Table Surface:
Flat

Aluminium Equivalence

+
No items found.
Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Aluminium Equivalence
Aluminium Equivalence measured at 100kVp using narrow beam geometry.

Interactive 3D Model

+
No items found.

Press play button to interact with the 3D model

Interactive 3D Model

Press play button to interact with the 3D model

Adept Medical Storage System (AM0001) Configuration

+
No items found.

A space-saving, storage solution for the Adept Medical suite.

Custom-designed for your Adept Medical products, the Adept Medical Storage System* is a low-profile, wall hanging solution to help organise your workspace with ease, speed and efficiency.

*Brackets are intended for specified Adept Medical product use only.

**Note: Products shown, and device placement are artist’s impressions only.

AM0440 Antegrade IR Platform requires 2x AM0001 (contains 4x brackets).

Download the Brochure or click here to order yours today.

Adept Medical Storage System (AM0001) Configuration

A space-saving, storage solution for the Adept Medical suite.

Custom-designed for your Adept Medical products, the Adept Medical Storage System* is a low-profile, wall hanging solution to help organise your workspace with ease, speed and efficiency.

*Brackets are intended for specified Adept Medical product use only.

**Note: Products shown, and device placement are artist’s impressions only.

AM0440 Antegrade IR Platform requires 2x AM0001 (contains 4x brackets).

Download the Brochure or click here to order yours today.

+
No items found.

+
No items found.

+
No items found.

Training Platform

The Adept Medical Training Platform has been produced to assist Adept Medical’s Table Accessories users by providing information on our product portfolio.

With a step-by-step pictorial guide on unboxing, set-up, usage, cleaning, re-boxing, repairs, warranty and replacement parts, it has been developed to support our customers in every step.

Continue to training platform

Applications

Interventional Radiology
Interventional Radiology

Antegrade femoral artery approaching accessing the lower limb for treating  PAD / CLI.

Peripheral Intervention
Peripheral Intervention

Radial artery access approach via the patients' left side for procedures treating PAD / CLI.

Brochure Downloads

Please select a brochure in your preferred language to download. If you require an additional language, please contact us.

Brochure Downloads

FAQ

+

+

+

+

+

+

How much does it weigh?

+

At 4 kgs, it is very light and easy to set up for 2 people.

Does it work with my imaging system?

+

It works with all commonly used imaging systems with tables longer than 2.4m.

Does it work on both patient legs?

+

The product is designed to work on both left and right legs, for right leg access the wires simply transition over the patients stomach from the platform surface.
