STARSystem

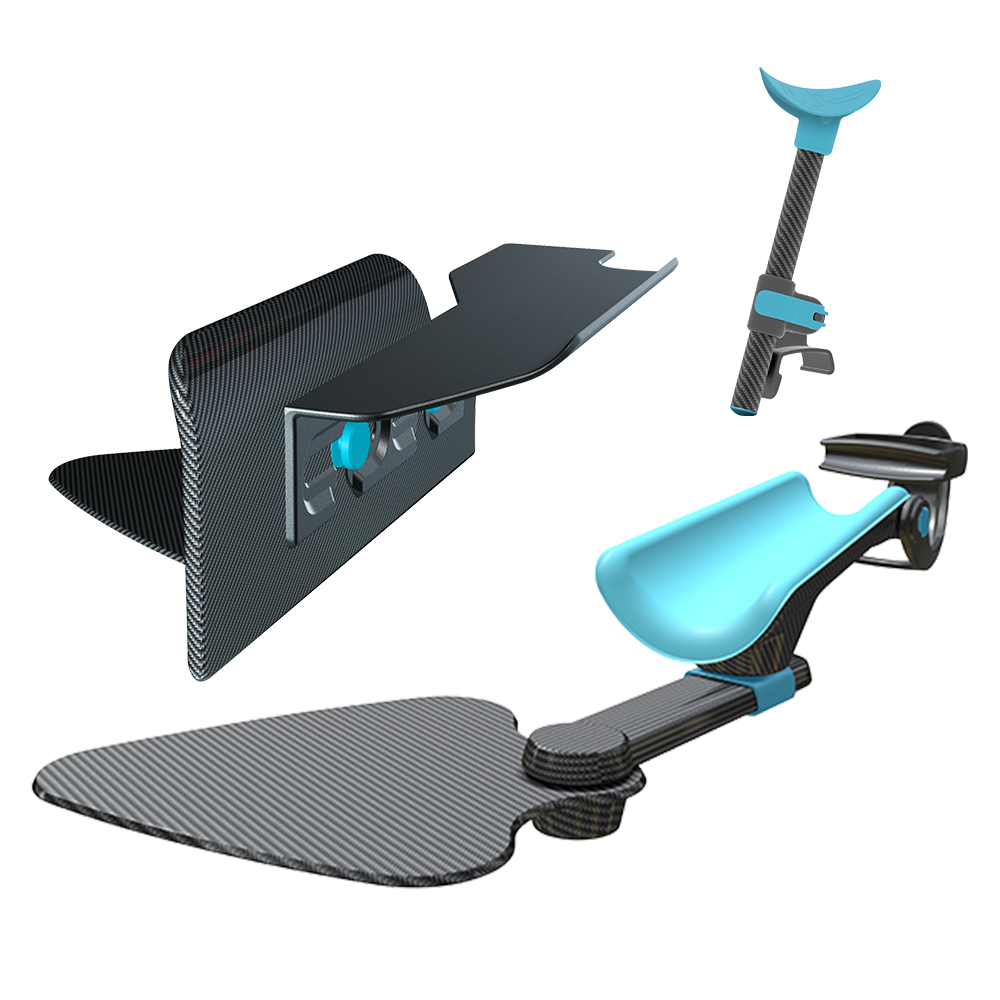

The STARSystem comprises the STARBoard, STARSupport and STARTable to form a complete, clinically engineered patient positioning system for right side radial access.

EnquireCatalogueTraining

Overview

The STARSystem facilitates ease of radial access during Interventional Cardiology procedures, while enhancing the operational environment.

Designed to work with any cardiac or radiology procedure table, the STARSystem is a patient positioning system that is quick to install and adjust to variations in patient size. Set-up takes seconds with no consumable components required. The STARBoard allows for quick, effective presentation of the patient’s wrist for distal radial access and for proximal radial access when the hyper-extended position is preferred. Once access is achieved, a simple adjustment of the STARBoard allows you to rotate the patient’s wrist to a more relaxed, medially-rotated position during the rest of the procedure. The system facilitates both right and left arm access when working on the patient’s right side. Made with carbon fibre for superior strength, radiolucency and durability, the STARBoard is lightweight and compact.

Applications

Interventional Cardiology
Interventional Cardiology

Radial artery access approach via the right or left arm while working on the patients' right side for cardiology procedures such as Coronary Angiography / Percutaneous Coronary Intervention.

Interventional Neuroradiology
Interventional Neuroradiology

Radial artery access approach via the right or left arm while working on the patients right side for Cerebral Angiography / Stroke / Anuerism.

Highlights

STARSystem

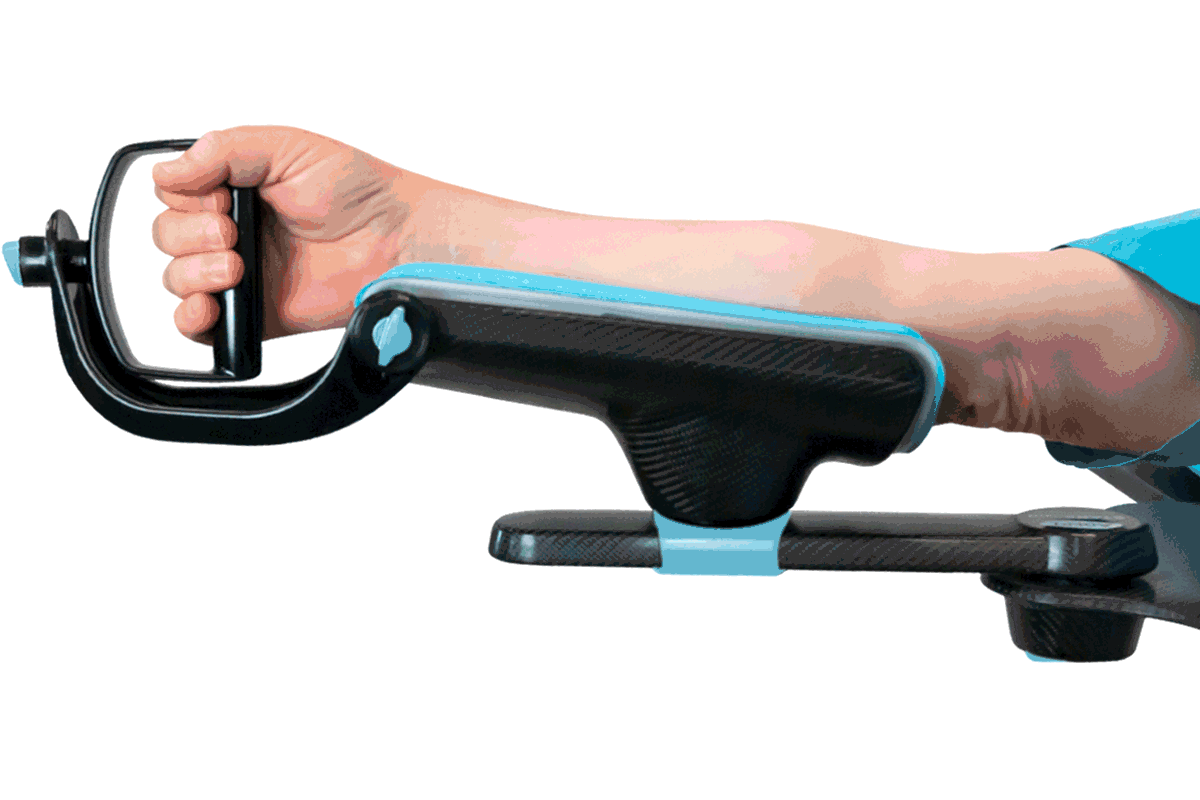

The STARBoard will hold the patient's arm in the position you set with the adjustable friction bearings while remaining free to rotate and adjust.

STARSystem

The STARTable provides clinicians with an adjustable ergonomic work surface and extra protection from scatter radiation with 0.5mm Lead (Pb). Click here to check the scatter radiation report.

STARSystem

The STARSupport connects to the STARBoard after radial access is gained enabling left arm procedures with superior patient comfort.

Features

Clinician-led design

Designed in consultation with clinician input

Scatter radiation shielding

The X-ray shield provides extra layer of scatter radiation protection

Fits all tables

Designed for use for any standard procedure table

Quick and easy set-up and removal

Designed for easy set-up and removal

Easy Positioning

Can be adjusted to suit individual patient size

Crafted from carbon fibre

Light-weight, radiolucent and durable

Ergonomic surface

Provides clinicians an adjustable work-surface for their comfort

Specifications

Dimensions and Weight

+
No items found.

Dimensions

STARBoard
71cm x 45cm

STARSupport
35cm

STARTable

71cm x 51cm

Weight

STARBoard
0.8kg

STARSupport
0.2kg

STARTable
2.3kg

Max weight supported: 1kg

Dimensions and Weight

Dimensions

STARBoard
71cm x 45cm

STARSupport
35cm

STARTable

71cm x 51cm

Weight

STARBoard
0.8kg

STARSupport
0.2kg

STARTable
2.3kg

Max weight supported: 1kg

Product Code Configuration

+
No items found.

AM0160 STARSystem

AM0100 STARBoard + STARSupport

AM0140 STARTable

Product Code Configuration

AM0160 STARSystem

AM0100 STARBoard + STARSupport

AM0140 STARTable

Imaging Table Compatibility

+
No items found.

Ensure table geometry falls within this specification

Table Width
45cm to 70cm

Table Length
≥200cm

Table Angulation:

+/- 15° lateral & longitudinal

Table Surface:
Flat

Imaging Table Compatibility

Ensure table geometry falls within this specification

Table Width
45cm to 70cm

Table Length
≥200cm

Table Angulation:

+/- 15° lateral & longitudinal

Table Surface:
Flat

Aluminium Equivalence

+
No items found.
Aluminium Equivalence measured at 100kVp using narrow beam geometry.
Aluminium Equivalence
Aluminium Equivalence measured at 100kVp using narrow beam geometry.

Interactive STARBoard 3D Model

+
No items found.

Press play button to interact with the 3D model

Interactive STARBoard 3D Model

Press play button to interact with the 3D model

Interactive STARTable 3D Model

+
No items found.
Interactive STARTable 3D Model

Interactive STARSupport 3D Model

+
No items found.
Interactive STARSupport 3D Model

+
No items found.

+
No items found.

+
No items found.

Compatible Products

ArmSure
ArmSure

Provides simple, safe, and secure management of your patient’s arms, protecting the sterile field, with the added benefit of providing additional radiation protection in cath labs.

Learn more
Drape Support
Drape Support

The Drape Support is for versatile surgical drape management and patient comfort.

Learn more
Retrograde IR Platform
Retrograde IR Platform

A lightweight over-patient work surface that improves workflow and patient safety during retrograde femoral access procedures.

Learn more

Training Platform

The Adept Medical Training Platform has been produced to assist Adept Medical’s Table Accessories users by providing information on our product portfolio.

With a step-by-step pictorial guide on unboxing, set-up, usage, cleaning, re-boxing, repairs, warranty and replacement parts, it has been developed to support our customers in every step.

Continue to training platform
No items found.

Training Platform

The Adept Medical Training Platform has been produced to assist Adept Medical’s Table Accessories users by providing information on our product portfolio.

With a step-by-step pictorial guide on unboxing, set-up, usage, cleaning, re-boxing, repairs, warranty and replacement parts, it has been developed to support our customers in every step.

Continue to training platform

Brochure Downloads

Please select a brochure in your preferred language to download. If you require an additional language, please contact us below.

Brochure Downloads

By entering your email address you agree to our Terms & Conditions

Ready to Chat?

Please leave your details and we will contact you by email to discuss this product and your personal requirements further.

Leave Your Details

Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

By entering your email address you agree to our Terms & Conditions

FAQ

+

+

+

+

+

+

+

How much protection from scatter radiation does it offer?

+

The shield includes 0.5mm lead (Pb) for scatter protection.

Does it assist with left arm access too?

+

The system comes with the STARSupport which can be connected to the STARBoard for left arm access.

Is it easy to clean?

+

The system components can be easily wiped with disinfectant between cases. You can consider placing it within a clean bag that is disposed of following each procedure.
