The Lower Leg Support gently immobilises the patient’s leg during Fluoroscopy guided treatment of Critical Limb Ischemia. It holds the foot comfortably in a slightly plantar flexed position and is endo/exo-rotation capable, providing multiple positioning options to facilitate imaging. The clinician-led, ergonomic design optimally positions the leg to suit the procedural requirements desired during lower limb interventions. The Lower Leg Support is compatible with most common table models and is suitable for use with C-Arm imaging systems. Resting on top of the table mattress, it can be secured with two Table Straps equipped with buckles for tensioning and quick release. The Table Straps wrap around the cantilevered table and mattress, ensuring device security. Made from carbon fibre composite, the Lower Leg Support is radiolucent, durable and easy to clean, lightweight and easy to handle, providing a simple, repeatable, single-person set-up solution.
Peripheral leg salvage interventions such as PAD / CLI via femoral or paedal approach.
Radial artery access approach via the patient's left side for procedures treating PAD / CLI
The Lower Leg Support is fitted with a clinically designed, soft foam Leg Pad, providing pressure management for patients who often suffer from painful ulcerations, and soft foam straps to gently immobilise patients under conscious sedation.

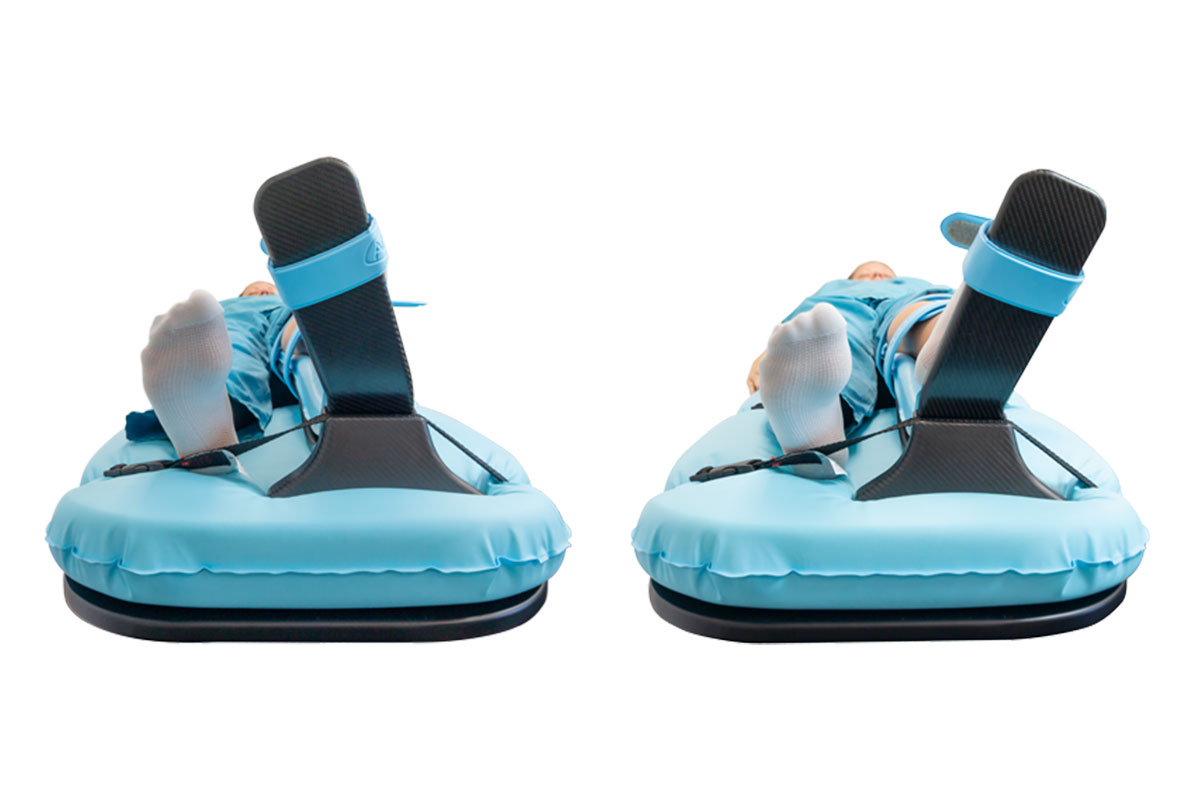

The reversible Footplate allows the product to be used on both the left and right foot.
The Footplate can be removed entirely to enable distal artery access, ultrasound imaging and manipulation of the foot, should it be required during the procedure.
Leg immobilisation
Gently immobilises the patient’s leg during Fluoroscopy guided treatment of Critical Limb Ischemia
Pressure management
Fitted with a soft, foam pad for patients experiencing painful ulcerations
Soft straps to secure lower leg
Soft, pliable and durable straps to secure lower leg for image quality
Adjustable Footplate
Footplate can be adjusted for right or left foot, or removed entirely to enable distal artery access, ultrasound imaging and manipulation of the foot
Radiolucent
Made from materials that are permeable to X-ray radiation, allowing for clear imaging
Patient comfort
Designed to enhance patient comfort
Quick and easy set-up and removal
Designed for easy set-up and removal
Dimensions and Weight
Lower Leg Support
56cm x 31cm x 20cm
Lower Leg Support
3.5kg
Lower Leg Support
56cm x 31cm x 20cm
Lower Leg Support
3.5kg
Product Code Configuration
AM3000 Lower Leg Support
AM3000 Lower Leg Support
Imaging Table Compatibility
Table Width
45cm to 70cm
Table Length
≥200cm
Table Angulation:
+/- 15° lateral & longitudinal
Table Surface:
Flat
Table Width
45cm to 70cm
Table Length
≥200cm
Table Angulation:
+/- 15° lateral & longitudinal
Table Surface:
Flat

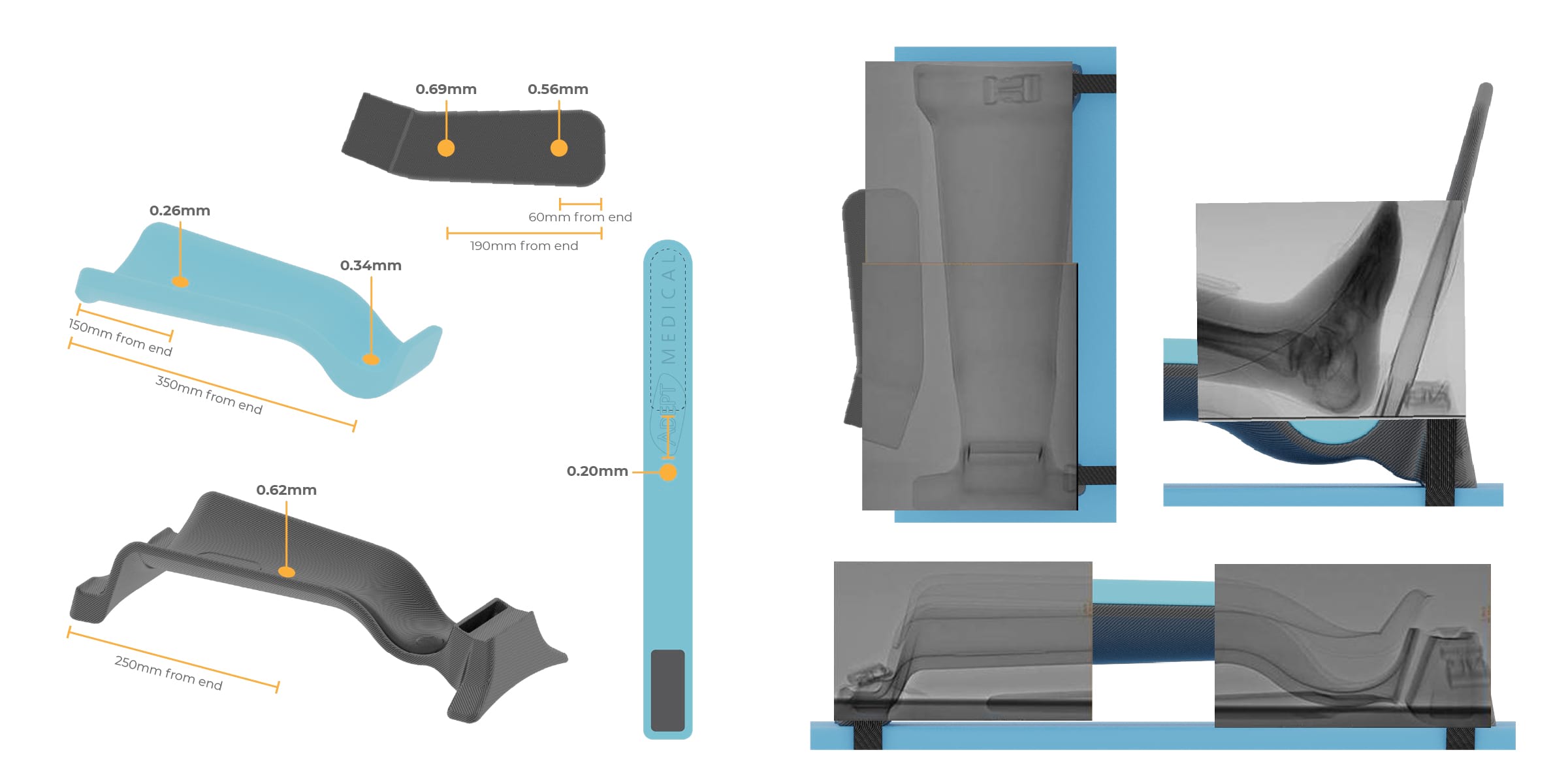

Aluminium Equivalence
Interactive 3D Model
Press play button to interact with the 3D model
Press play button to interact with the 3D model
Provides simple, safe, and secure management of your patient’s arms, protecting the sterile field, with the added benefit of providing additional radiation protection in cath labs.
A lightweight work surface that improves workflow and patient safety during antegrade femoral access procedures.
The Drape Support is for versatile surgical drape management and patient comfort.
The Adept Medical Training Platform has been produced to assist Adept Medical’s Table Accessories users by providing information on our product portfolio.
With a step-by-step pictorial guide on unboxing, set-up, usage, cleaning, re-boxing, repairs, warranty and replacement parts, it has been developed to support our customers in every step.
Please select a brochure in your preferred language to download. If you require an additional language, please contact us below.
By entering your email address you agree to our Terms & Conditions
Is it radiolucent?
The support is made from carbon fibre with a foam core and a foam pad, giving it a combined aluminium equivalence of 0.96mm.
Can the pad and straps be sterilized?
The pad and straps are designed for re-use. They can be wiped with disinfective between patients.
How do I secure it to my Imaging system?
The leg support is secured by looping straps around the cantilevered Image table. Pulling these tight secures the support to the mattress.
